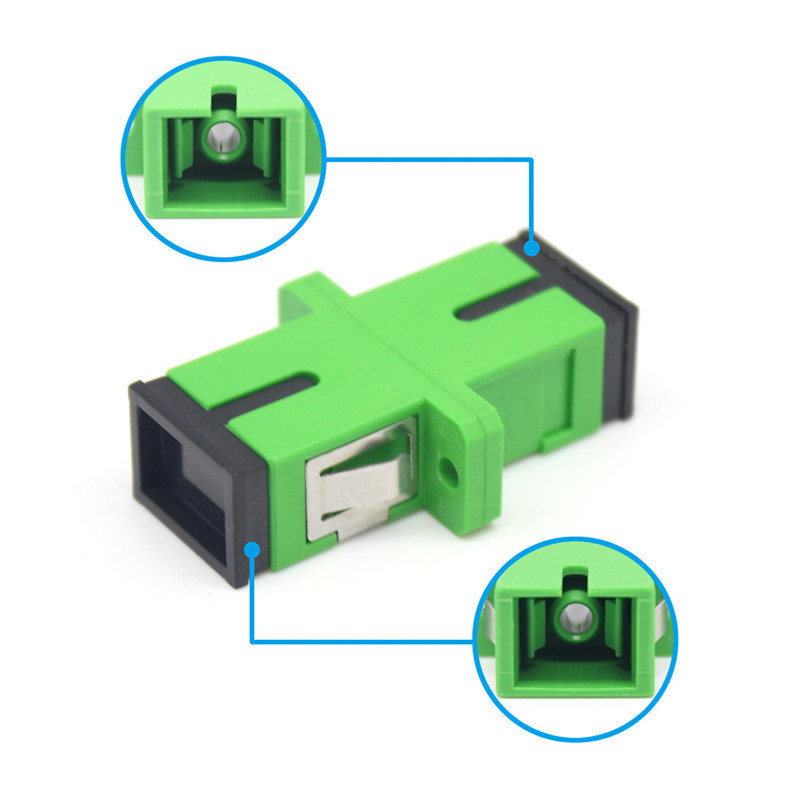

Telecommunications Fiber Optic SC APC Adapter with Flip Auto Shutter and Flange
Fiber Optic Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is acceptable to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables.
Specifications
| Parameter |
Value |
Parameter |
Value |
| Durability |
0.2 dB (500 Cycle Passed) |
Insertion Loss |
≤ 0.2 dB (Zr. Ceramic) |
| Humidity |
95% RH (Non Packaging) |
Storage Temperature |
-40°C to +85°C |
Key Features
- Interface Type: SC/APC (8° angled physical contact, minimizes return loss, ideal for CATV/FTTH networks)

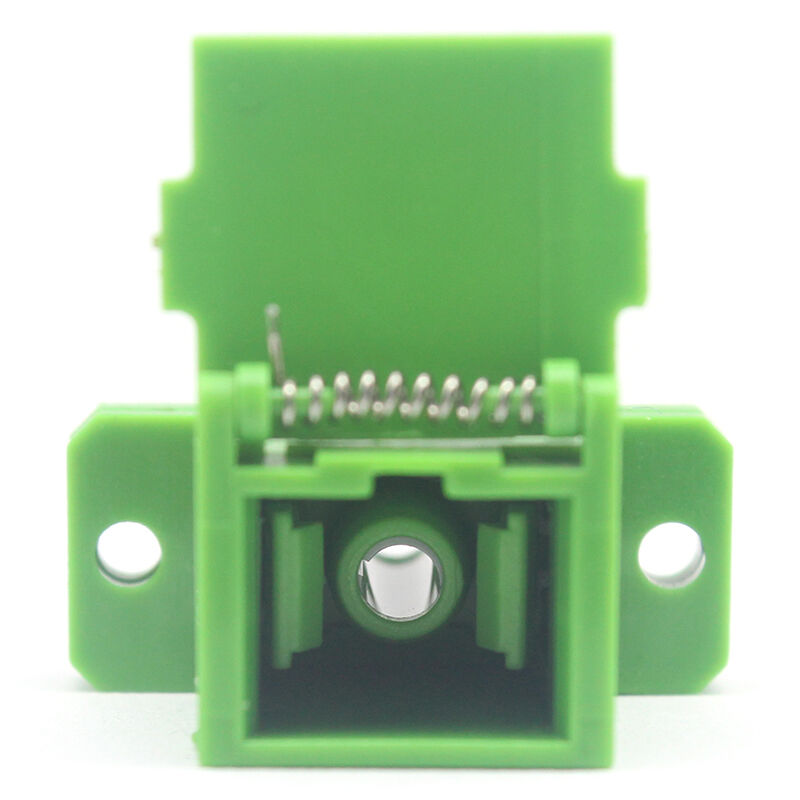

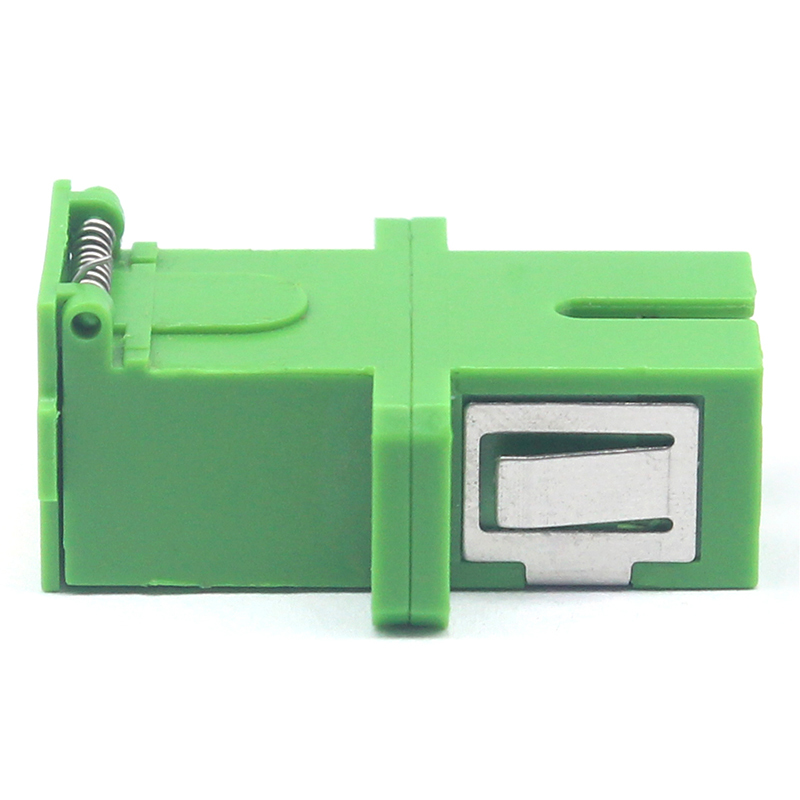

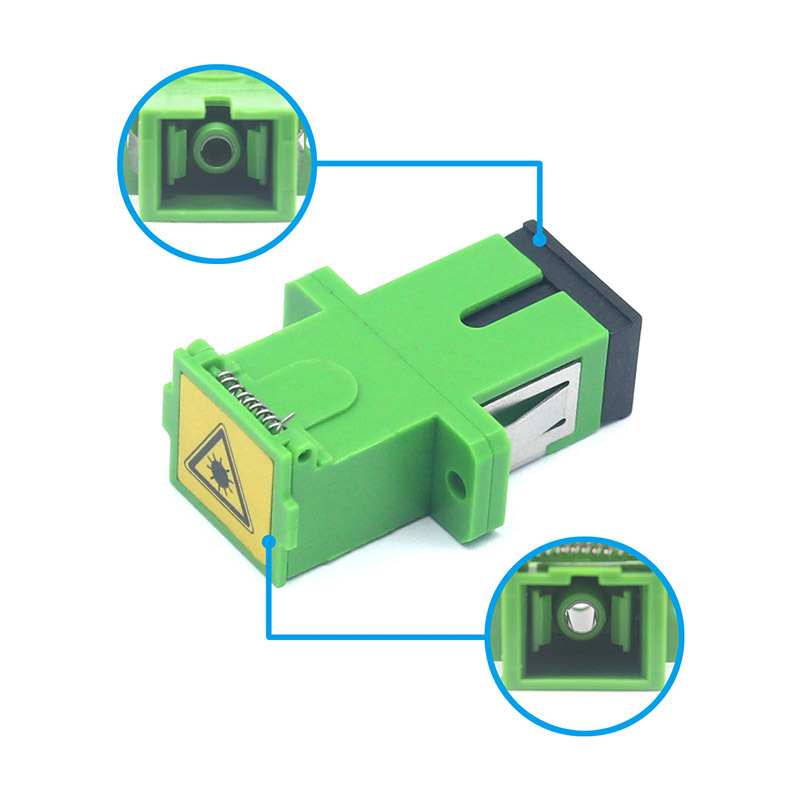

- Protective Design: Spring-loaded shutter on the front end automatically closes when no patch cord is inserted, preventing dust ingress and laser radiation exposure

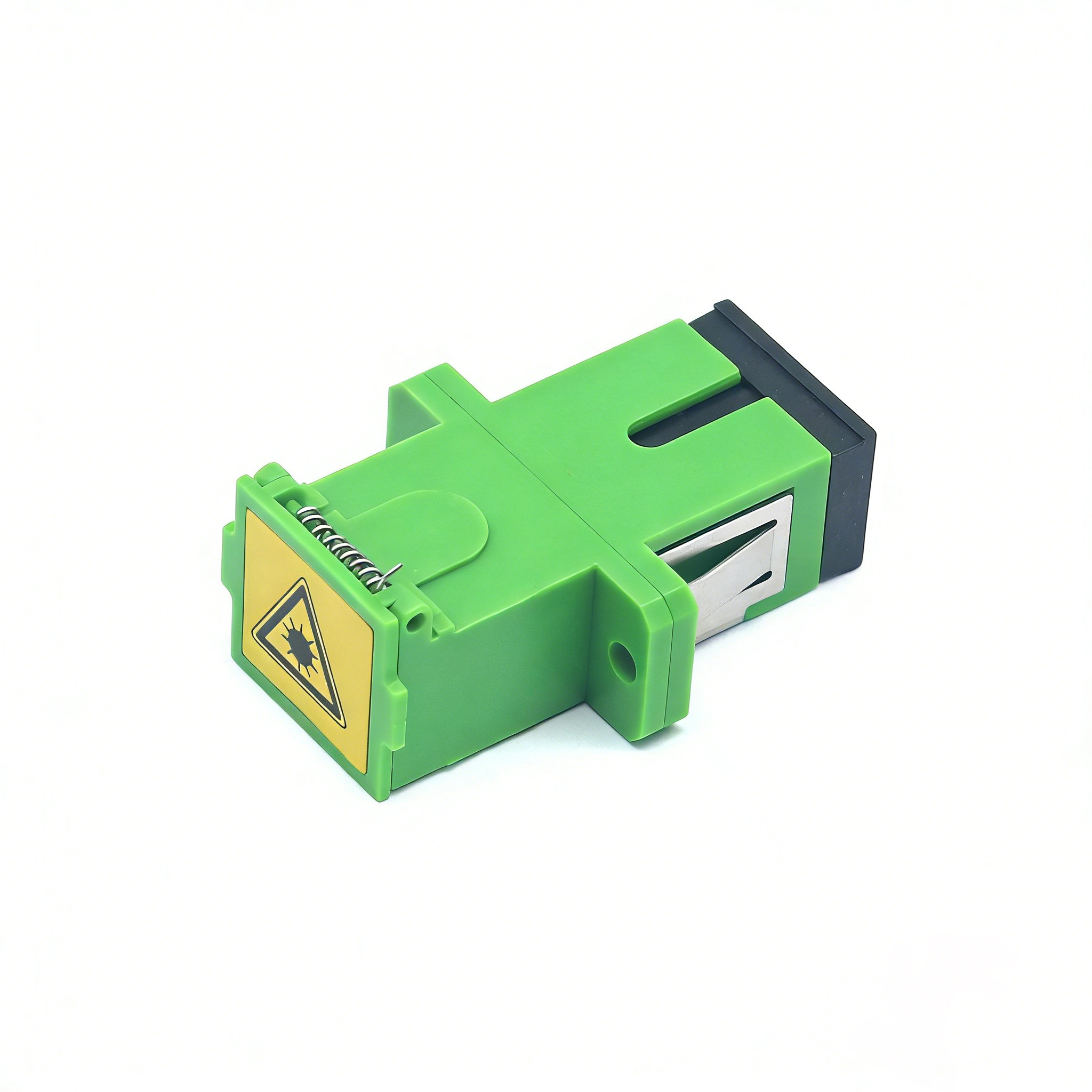

- Safety Label: Yellow laser warning symbol (⚠️) indicates potential laser radiation hazard inside the adapter

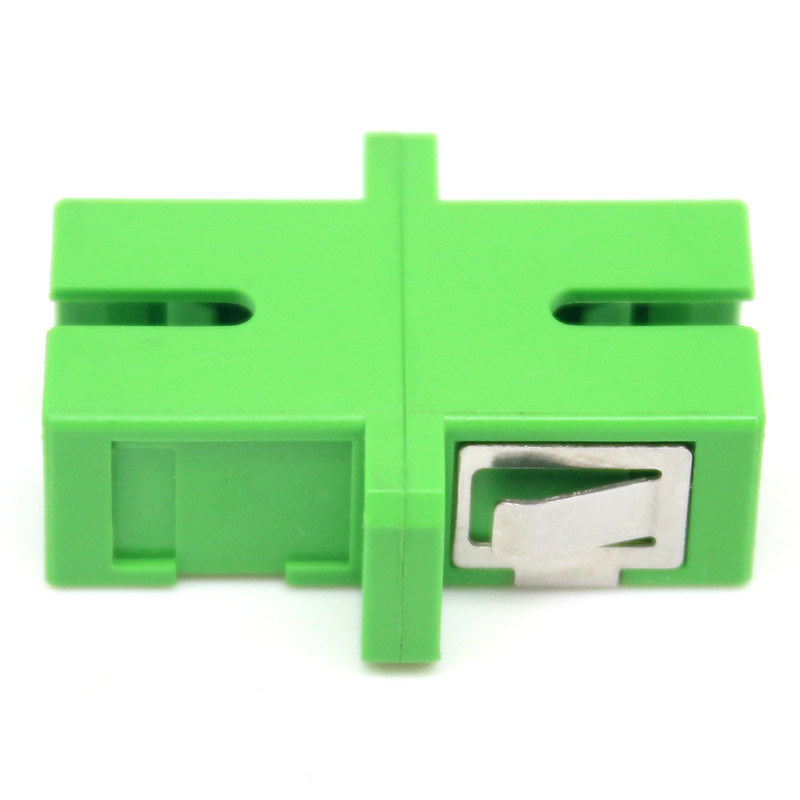

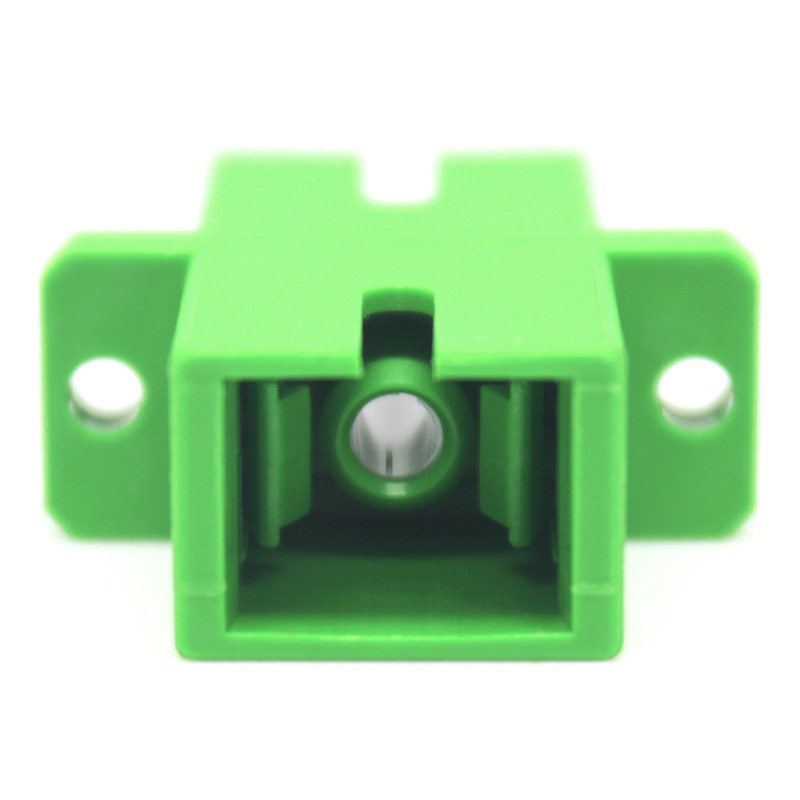

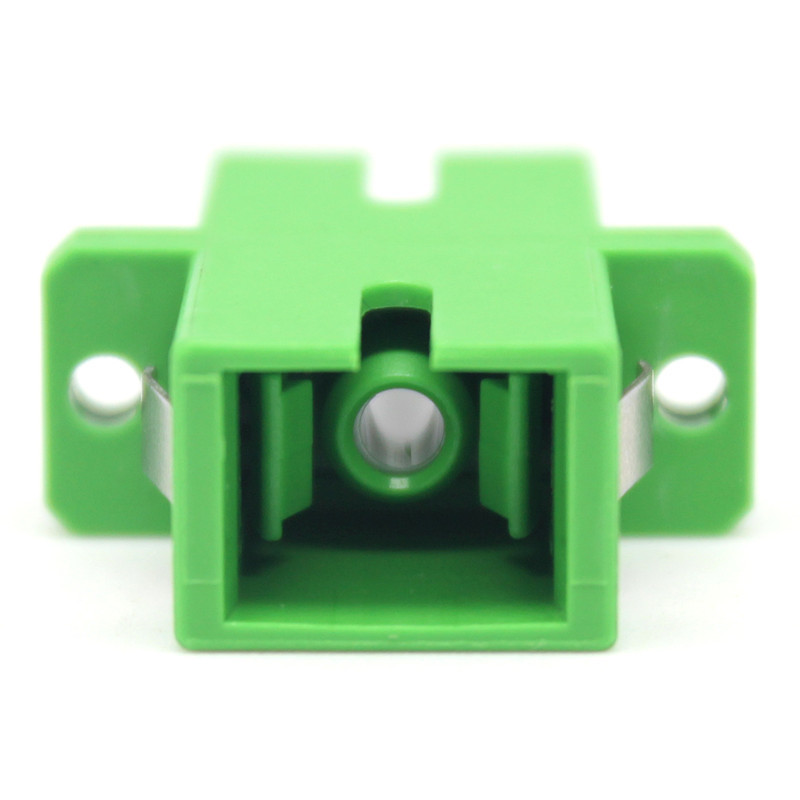

- Structure: Green plastic housing with snap-in mounting design; ceramic ferrule ensures precise alignment for minimal insertion loss
Applications
FTTH (Fiber to the Home) Networks
Scenario: Connecting the optical network terminal (ONT) at the subscriber's end to the distribution fiber from the local exchange.
CATV & Broadcast Networks
Scenario: Linking optical transmitters, receivers, and optical splitters in cable TV headends and HFC (Hybrid Fiber-Coaxial) networks.
Data Center & Enterprise Cabling
Scenario: Patch panel interconnections and server-to-switch fiber links in high-density data centers.

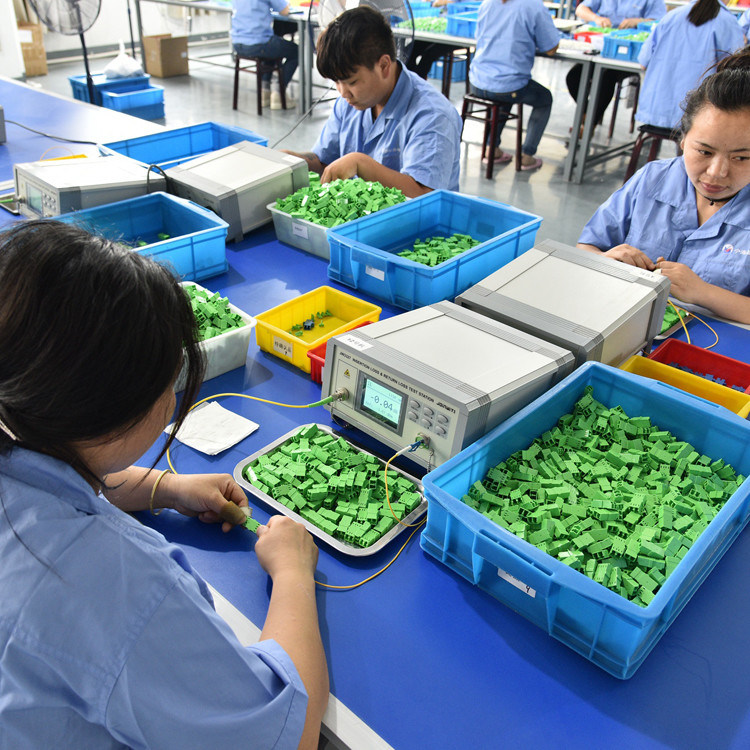

Testing
Frequently Asked Questions
Are you a trading company or manufacturer?
70% of our products we manufactured and 30% do trading for customer service.
How can you ensure the quality?

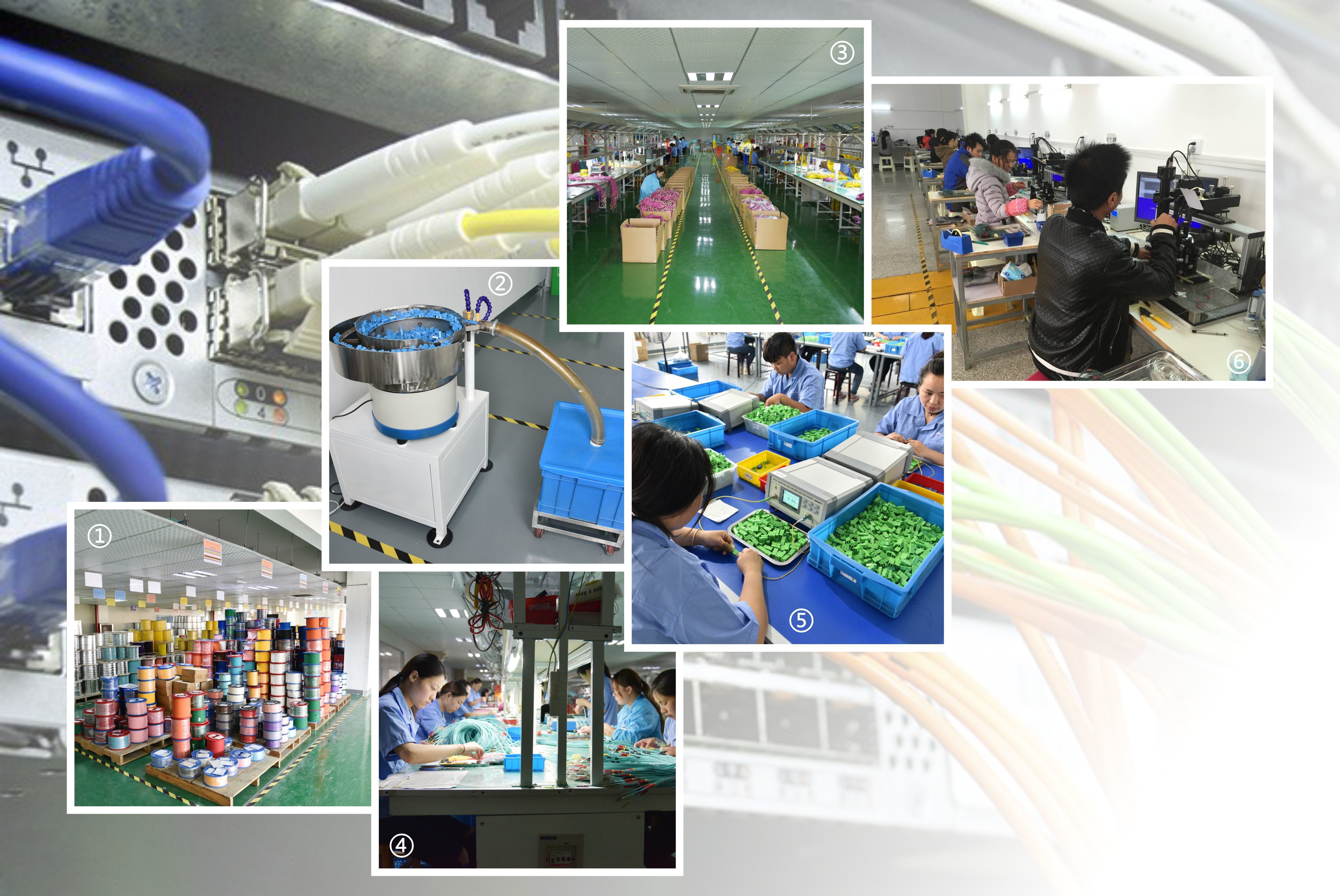

We are a one-stop manufacturer with complete facilities and over 15 years of manufacturing experience. We have passed ISO 9001 Quality Management System certification.
Can you provide samples? Is it free or extra?
Yes, after price confirmation we can offer free samples, but shipping costs need to be paid by your side.
How long is your delivery time?
In stock: Within 7 days; Not in stock: 15-20 days, depending on your quantity.
Can you do OEM?
Yes, we can provide OEM services.
What is your payment term?
Payment ≤ $4,000 USD: 100% in advance. Payment ≥ $4,000 USD: 30% TT in advance, balance before shipment.
How we can pay?
TT, Western Union, Paypal, Credit Card and LC.
Transportation?
Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train.
